Max payload

1000 kg

2200 lb

Engine power STAGE V

9.6 kW

13 hp

Width

800 mm

31.5 in

Supply

diesel

Product data sheet

FIND OUT
THE TECHNICAL DETAILS AND
FEATURES

Download the brochure

Information

Do you want more information? Fill in the following form and we you will be immediately contacted.

    Name*

    Surname*

    Email*

    Phone*

    City*

    Nation*

    County

    Postal Code*

    Are you a Dealer/Renting company or End user? *

    Market sector

    Request

    Type of request*

    InformationsAfter-sales services

    * Fields with asterisk are required

    I confirm that I have read the information on the personal data management.I agree to the processing of my personal data according to the mentioned information.

    Standard equipment

    •  Tracked undercarriage with hydrostatic transmission and oscillating rollers in the center of the track for overcoming obstacles.
    • The patented layout of the rubber track provides a wide  area and a low ground pressure, high stability and an excellent driving comfort in all conditions of use.
    • 13 hp water-cooled Diesel engine and electric start.
    •  Hydrostatic transmission with two piston pumps with variable displacement and two orbital motors. Steering by the rotation of the tracks.
    •  Hydraulic power take off (P.T.O.) double-effect with max delivery 28 l/min and pressure at 155 bar (optional).
    •  Standard bonnet and operator platform.

    Available in 4 different configurations:

    • MT – MTP, front dumping skip with self-loading shovel (65 litres, optional) predisposition
    • CA, front dumping 3 side extendible aluminum platform

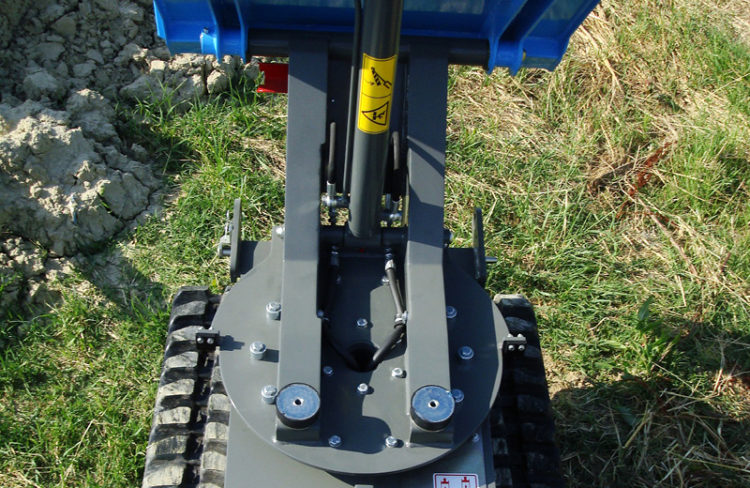

    • BT, dumping skip with 180° swiveling discharge.
    • AV – AVP, high tip dumping skip with self-loading shovel (65 litres, optional) predisposition

    Data, features and pictures are not binding and may be altered without any prior notice.
